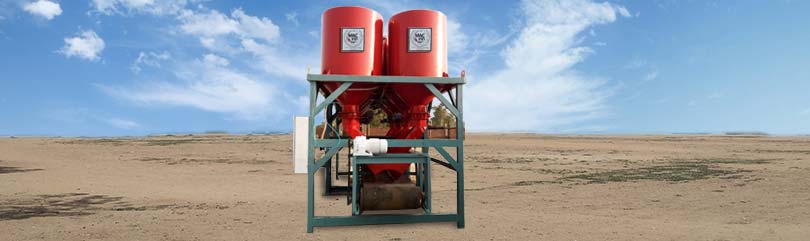

Feed Batching Plant

Industrial Overview

Agriculture and harvest is now an industry that survives on livestock and without it the poverty would supersede the economy of Pakistan. Therefore, the health of livestock becomes significant in the whole farming procedures to function. Well, these livestock survive on feed and these feed need to be healthy, nutritional and free from any bacteria or indigenous microorganisms present around us. The rightly batched feed is what these farm animals required for improved productivity and performance.

Automation In Feed Batching

Feed Batching is a conventional process and it exists from the beginning of farming history. The only difference is that earlier it was hand handled but time takes its toll, therefore, the same process adopted the advance techniques to make it easier and efficient.

And now with technological innovations, feed batching has been taken to a whole new level. You would see automation in feed batching in form of automated feed batching plant.

Technical Innovations In Feed Batching Plant

Feed batching is a technical process that cannot be manually satisfying anymore. It requires a professionally trained team which can carefully operate the automated equipment with expertise.

The whole process of feed batching is dependent on accurate mixing of raw materials. Which are blend together in appropriate and suitable proportions to obtain the homogenous as well as consistent mixture. The entire process supports in converting the mixture into particles of similar sizes and then put together in a single unit.

Advantages Of MACINN’S Automated Feed Batching Plant

MACinn is the only manufacturer and designer of these state of the art Feed Batching Plants in Pakistan. We deliver and install the machinery at your worksite with the help of our expert team. Also, our machinery comes with following advantages:

  • Ensures Faster Yield
  • Cost Effective in Construction and Maintenance
  • Efficient in Operations and Processing
  • Guarantees Accuracy in Process of Batching
  • Increased Precision, Higher Productivity
  • Reduces Labor Cost

Work Force To Optimize Feed Batching Through Controlled Systems

The experienced and professional team at MACinn have introduced computerized controlled systems that has sensors to detect and monitor:

  • The Filling of Bins
  • Accurate Weighing of Batches of the Feed
  • Proper Mixing of the Raw Materials
  • Supervising the Sizes of Pellets Formed

Makin’s Feed Batching Plant comes with a software for feed formulation i-e SCADA (Supervisory Control and Data Acquisition), which is installed in PLC (Programmable Logic Controller). This helps achieve the following:

  • Control the whole process through a centralized control room locally or at remote locations.
  • Supervises, collects and integrates data.
  • Interact with the devices of the machine like valves, pumps, motors and convert different environmental and eternal signals to useful electrical and mechanical actions through sensors and other devices.
  • Interacts with the user through HMI software.
  • Records and tabulates the data in a readable format.

Feed Batching Plant – MACINN Models:

Model 1: 5 TON SILO

Silo Specification Mixer Specification
Height = 4450 mm Length = 1.3 m
Cylinder Height = 1100 mm Diameter = 1 m
Cone Height = 1600 mm Volume = 1 m3
Cylinder Diameter = 2500
Volume = 9 m3

Model 2: 10 TON SILO

Silo Specification Mixer Specification
Height = 6235 mm Length = 1.5 m
Cylinder Height = 2850 mm Diameter = 1.1 m
Cone Height = 2500 mm Volume = 1.5 m3
Cylinder Diameter = 2500
Volume = 18 m3

Ribbon Mixer

Ribbon Mixer is designed with Twin mixing Ribbon. During mixing, twin ribbon can mix feed in convective direction, inner and outer, up and down to even powder in short time.

  • Mixing blade is two spiral "S" type design.
  • Excellent and high speed mixing efficiency.
  • Powder won't be raised mixing operation.
  • Complete and thorough of raw materials by ribbon agitator which create two layers and counter
  • Movement of flows.

Weighing System

  • Nickel plated alloy steel IP67 “S” type load cell.
  • Tension and compression applications.
  • Also available in imperial capacities and dimensions.
  • Suitable for hanging, hopper and other weighing devices.
