Concrete Batching Plant

Introduction

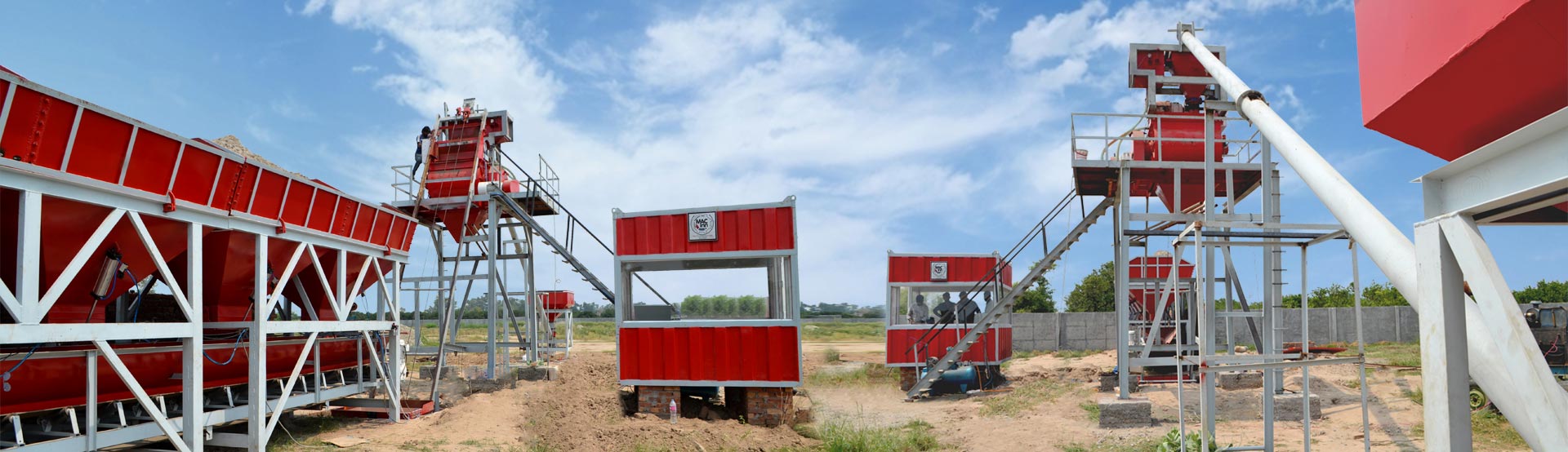

The concrete batching plant is a construction machinery that combines various ingredients to make RMC (ready mix concrete). These ingredients are aggregates, water, cement and additives. This factory can also be known as a Concrete Batching Plant. Production of concrete is as per a set mix material recipe. This is controlled in the plant and then delivered to work sites.

Advantages

  • Speedy construction through mechanized operation
  • Lower labour and site supervising cost
  • Consistent quality through accurate computerized control
  • Minimizing cement wastage due to bulk handling
  • Pollution free
  • Economy in use of raw material resulting in saving of natural resources

CONMAC 30:

Technical Specifications:

CONMAC 30

Plant Capacity m3/hour 30
Mixer Capacity m3 0.5
Total Motor Power kW 65
Voltage/Frequency Hz 380V / 50

Cement Weighing Hopper

Weighing Capacity kg 300
Load Cell kg 3x500
Pneumatic Valve 1pc
Drive 1pc
Vibrator 1 unit

Water Weighing Hopper

Weighing Capacity kg 160
Load Cell kg 3x500
Pneumatic Valve 1pc
Drive 1pc

Additive Weighing Hopper

Capacity kg 20
Load Cell kg 50
Pneumatic Valve 1pc
Pump kW 0.75

Model

JS 500

Capacity m3/h 25-30
Discharge Volume Ltr 500
Charge Volume Ltr 800
Mixing Blade Speed r/min 35.5
Number of Mixing Blade 6x2
Mixer Motor Power kW 18.5
Hoist Electromotor Power kW 5.5
Water Pump Power kW 0.75
Lifting Speed of Hopper m/min 18
Overall Dimension (LxWxH) ft 9.5x7x8.5
Overall Weight kg 4070

AGGREGATE BIN

Bin Volume m3 20
Aggregate Comp./Discharge m3 4 comp 5
Charge Volume Ltr 800
Air Preparation unit 1
Sand Vibrator unit 4

Weighing Belt Conveyor

Dimensions ft 2x16.5
Load Cells kg 4 x 2000
Rubber Belt ft 67
Drums (covered with 9mm rubber) Drive drum
Weighing Hopper Vibrators unit 1
Motor - Gearbox kW 7.5

Air compressor & Pneumatic Equipment

Model: UB40-160
Motor 4HP, 3kw
Cylinder W3
Air Delivery (16.8C.F.M) /min 477L
Pressure 145PSI 10Bar
Weight kg 140
Model: UB40-160
Motor 4HP, 3kw

Skip Hoist and Bucket Feeding

Motor - Gearbox kW 0.75
Move Speed m/s 1.1
Lifting Speed of Hooper m/min 5.5
Dry Filling Capacity m3 0.4
Max. Loading Capacity tons 18

Cement screw conveyor - wam

Type Universal Input
Diameter mm 219
Motor Power kW 7.5
Conveyor Length ft 40
Weight kg 680

CONMAC 45:

Technical Specifications:

CONMAC 45

Plant Capacity m3/hour 45
Mixer Capacity m3 0.75
Total Motor Power kW 80
Voltage/Frequency Hz 380V / 50

Cement Weighing Hopper

Weighing Capacity kg 400
Load Cell kg 3x500
Pneumatic Valve 1pc
Drive 1pc
Vibrator 1 unit

Water Weighing Hopper

Weighing Capacity kg 300
Load Cell kg 3x500
Pneumatic Valve 1pc
Drive 1pc

Additive Weighing Hopper

Capacity kg 25
Load Cell kg 50
Pneumatic Valve 1pc
Pump kW 0.75

Model

JS 750

Capacity m3/h 45
Discharge Volume Ltr 750
Charge Volume Ltr 1200
Mixing Blade Speed r/min 35.5
Number of Mixing Blade 8x2
Mixer Motor Power kW 30
Hoist Electromotor Power kW 7.5
Water Pump Power kW 1
Lifting Speed of Hopper m/min 18
Overall Dimension (LxWxH) ft 12x7.5x9
Overall Weight kg 6700

AGGREGATE BIN

Bin Volume m3 24
Aggregate Comp./Discharge m3 4 comp 6
Charge Volume Ltr 800
Air Preparation unit 1
Sand Vibrator unit 4

Weighing Belt Conveyor

Dimensions ft 2x16.5
Load Cells kg 4 x 2000
Rubber Belt ft 79
Drums (covered with 9mm rubber) Drive drum
Weighing Hopper Vibrators unit 1
Motor - Gearbox kW 10

Air compressor & Pneumatic Equipment

Model: UB40-160
Motor 4HP, 3kw
Cylinder W3
Air Delivery (16.8C.F.M) /min 477L
Pressure 145PSI 10Bar
Weight kg 140
Model: UB40-160
Motor 4HP, 3kw

Skip Hoist and Bucket Feeding

Motor - Gearbox kW 1
Move Speed m/s 1.1
Lifting Speed of Hooper m/min 7.5
Dry Filling Capacity m3 0.4
Max. Loading Capacity tons 18

Cement screw conveyor - wam

Type Universal Input
Diameter mm 273
Motor Power kW 11
Conveyor Length ft 40
Weight kg 680

CONMAC 60:

Technical Specifications:

CONMAC 60

Plant Capacity m3/hour 55-60
Mixer Capacity m3 1
Total Motor Power kW 100
Voltage/Frequency Hz 380V / 50

Cement Weighing Hopper

Weighing Capacity kg 450
Load Cell kg 3x500
Pneumatic Valve 1pc
Drive 1pc
Vibrator 1 unit

Water Weighing Hopper

Weighing Capacity kg 300
Load Cell kg 3x500
Pneumatic Valve 1pc
Drive 1pc

Additive Weighing Hopper

Capacity kg 40
Load Cell kg 50
Pneumatic Valve 1pc
Pump kW 0.75

Model

JS 1000

Capacity m3/h 55-60
Discharge Volume Ltr 1000
Charge Volume Ltr 1600
Mixing Blade Speed r/min 35.5
Number of Mixing Blade 8x2
Mixer Motor Power kW 37
Hoist Electromotor Power kW 11
Water Pump Power kW 1.5
Lifting Speed of Hopper m/min 18
Overall Dimension (LxWxH) ft 16x7.5x13.5
Overall Weight kg 1000

AGGREGATE BIN

Bin Volume m3 32
Aggregate Comp./Discharge m3 4 comp 8
Air Preparation unit 1
Sand Vibrator unit 4

Weighing Belt Conveyor

Dimensions ft 2x16.5
Load Cells kg 4 x 2000
Rubber Belt ft 90
Drums (covered with 9mm rubber) Drive drum
Weighing Hopper Vibrators unit 1
Motor - Gearbox kW 15

Air compressor & Pneumatic Equipment

Model: UB40-160
Motor 4HP, 3kw
Cylinder W3
Air Delivery (16.8C.F.M) /min 477L
Pressure 145PSI 10Bar
Weight kg 140
Model: UB40-160
Motor 4HP, 3kw

Skip Hoist and Bucket Feeding

Motor - Gearbox kW 1.25
Move Speed m/s 1.1
Lifting Speed of Hooper m/min 11
Dry Filling Capacity m3 0.4
Max. Loading Capacity tons 18

Cement screw conveyor - wam

Type Universal Input
Diameter mm 273
Motor Power kW 15
Conveyor Length ft 43
Weight kg 940

CONMAC 75:

Technical Specifications:

CONMAC 75

Plant Capacity m3/hour 70-75
Mixer Capacity m3 1.5
Total Motor Power kW 125-135
Voltage/Frequency Hz 380V / 50

Cement Weighing Hopper

Weighing Capacity kg 800
Load Cell kg 3x500
Pneumatic Valve 1pc
Drive 1pc
Vibrator 1 unit

Water Weighing Hopper

Weighing Capacity kg 600
Load Cell kg 3x500
Pneumatic Valve 1pc
Drive 1pc

Additive Weighing Hopper

Capacity kg 50
Load Cell kg 50
Pneumatic Valve 1pc
Pump kW 0.75

Model

JS 1500

Capacity m3/h 70-75
Discharge Volume Ltr 1500
Charge Volume Ltr 2200
Mixing Blade Speed r/min 35.5
Number of Mixing Blade 8x2
Mixer Motor Power kW 60
Hoist Electromotor Power kW 22
Water Pump Power kW 2
Lifting Speed of Hopper m/min 18
Overall Dimension (LxWxH) ft 32x12x36
Overall Weight kg 11410

AGGREGATE BIN

Bin Volume m3 32
Aggregate Comp./Discharge m3 4 comp 8
Air Preparation unit 1
Sand Vibrator unit 4

Weighing Belt Conveyor

Dimensions ft 2x16.5
Load Cells kg 4 x 4000
Rubber Belt ft 103
Drums (covered with 9mm rubber) Drive drum
Weighing Hopper Vibrators unit 1
Motor - Gearbox kW 15

Air compressor & Pneumatic Equipment

Model: UB40-160
Motor 4HP, 3kw
Cylinder W3
Air Delivery (16.8C.F.M) /min 477L
Pressure 145PSI 10Bar
Weight kg 140
Model: UB40-160
Motor 4HP, 3kw

Skip Hoist and Bucket Feeding

Motor - Gearbox kW 1.25
Move Speed m/s 1.75
Lifting Speed of Hooper m/min 22
Dry Filling Capacity m3 0.4
Max. Loading Capacity tons 18

Cement screw conveyor - wam

Type Universal Input
Diameter mm 273
Motor Power kW 15
Conveyor Length ft 43
Weight kg 940

Basic Automation System

  • The plant is fully automated and the system is controlled on a 17 inch coloured touch-screen with integrated mouse and keyboard connection point.
  • The system is equipped with imported electrical installation devices and sensors. Remote stations with distributed I/O stations are also part of the plant automation.
  • Advance PLC program and error control algorithm enables high sensitivity in weighing and dosage control even at maximum capacity.
  • The MCC command panel is built for all working conditions and equipped with electrical protection system.
  • The operator is able to set different ratios of material and can perform calibration operations on the touch screen.
  • All process, production and failure information are also visible and may be printed by the operator.
  • The operator may choose between automatic or manual operation on the illuminated mimic diagram.
  • Digital indicators enable the operator to follow voltage and current values on the screen.
  • The system provides real-time simulation for the operator .This insures fast and safe training

Supervisory Control and Data Acquisition System (SCADA):

SCADA (Supervisory Control And Data Acquisition) is a type of industrial control system (ICS). Industrial control systems are computer controlled systems that monitor and control industrial processes that exist in the physical world

Features

  • SCADA system comprises a PC, printer, UPS and SCADA software which enables the operator to perform all commands and control functions like take report, detect failures etc on the PC screen with animation support.
  • The operator is also able to enter as many recipes as desired, can enter all customer and truck information into the system where production information is stored for one year.
  • Remote servicing and maintenance is possible via Internet.
  • SCADA system monitors overall performance of the plant and eliminate the need of manual data collection.
  • Alarm and wide monitoring system enables the operator to quickly spot and address problem.

Control Cabin:

Type Contains type
Dimension ft 8 x 8
Outer Surface Coating 0.70mm trapeze, painted galvanized steel sheet
Inner Surface Coating 6mm thickness chipboard for walls and ceiling.
8mm thickness cementboard and PVC int float.
Isolation 40mm thickness styrofoam and 80mm thickness glasswool
Windows PVC frame with heat insulated double glass
Other Features Embedded electrical installation with fittings, sockets and switches
Type First class insulation material and air conditioner.
