Block Making Machine

Introduction

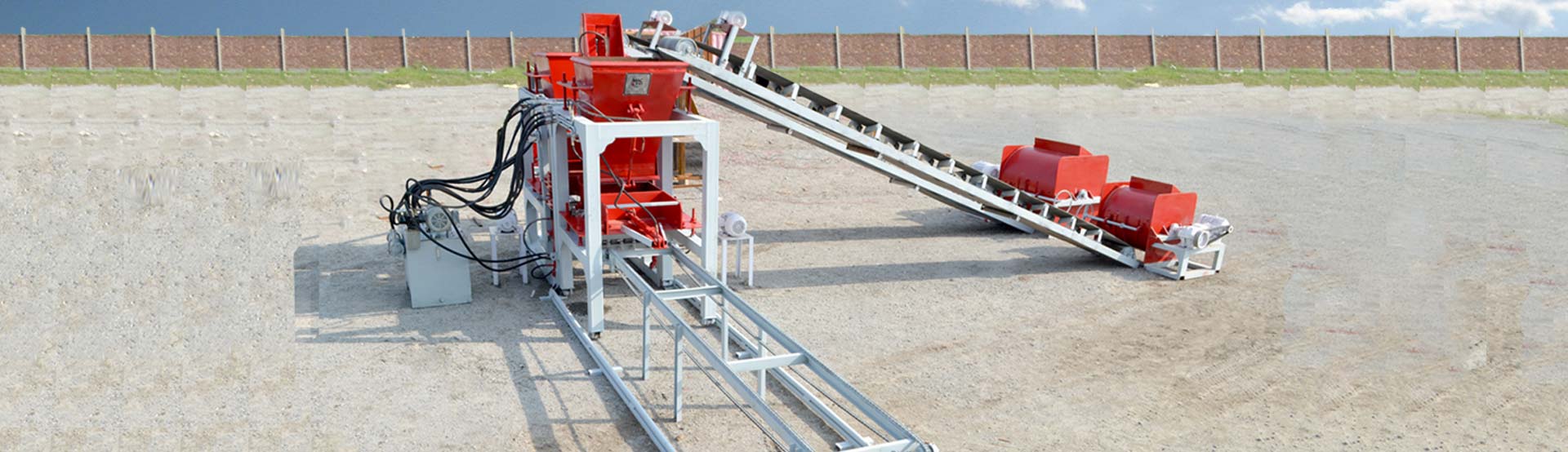

Worldwide popular, these technologically sophisticated and robustly designed paver block machine efficiently operate and produce paver blocks with standard as well as customized brick sizes. These block making machines come with electrically controlled systems. They are well equipped with the various functions to guarantee the best running of the machine.

PAVMAC Advantages

Variable Frequency Drive and Control

The motor starting current and soft start function control, prolong the life of the motor. This feature reduces mechanical accessory repair and motor damage, prolong the life of the motor and mechanical parts. The frequency converter saves about 20%-40% more power than the traditional converter.

Vibration System

Vibration table consists of dynamic table and fixed table. When vibration begin, dynamic table vibrate, static table remain static. The structure is designed to sustain the amplitude of vibration table, so as to ensure the high quality of concrete products with minimal maintenance cost.

Feeding System

Feeding frame, bottom plate and mixing blade are made of high-duty HARDOX steel which gives it extra durability. The location of bottom plate can be adjusted. Feeding system have sealing device to prevent leakage. The door of the discharging gate is controlled by the hydraulic cylinder.

Hydraulic Station

MACinn uses international brands for Hydraulic pumps and hydraulic valves. Tube uses “Flange Connection” that entails convenient installation and maintenance. Multi-point pressure detection point enables convenient detection. Motor and pump connection form good coaxial. Dynamic proportional valve and constant power pump make sure speed is uniform.

PAVMAC 12:

General Technical Parameters:

Machine Operating System Hydraulic System
Machine Production Capacity 100 -120 pallets/h
Pumping Capacity 12 gallons/min, 10 Hp
Hydraulic Oil Capacity 300 liter
Lower Vibration Capacity 2 x 7.5kW
Total Capacity Usage 50 kW
Minimum Product Height 50 mm
Maximum Product Height 300 mm
Number of Product on a pallet 12 interlocked paving stone
Wooden Pallet Dimensions 30x24 inch
Production Capacity Size (mm) Pieces/Pallet Cycle Time sec Shift Production 8h Monthly Production
Paver 100x200x60 12 15-20 8400 218400
I Section 198x163x60 9 15-20 6300 163800
Blocks 100x200x400 5 15-20 3500 91000
Hollow BLock 100x200x400 5 15-20 3500 91000
Curb Stones 150x300x450 2 15-20 1400 36400
GET QUOTE

PAVMAC 18:

General Technical Parameters:

Machine Operating System Hydraulic System
Machine Production Capacity 100-120 pallets/h
Pumping Capacity 14 gallons/min, 15 Hp
Hydraulic Oil Capacity 500 liter
Lower Vibration Capacity 2 x 11.1 kW
Total Capacity Usage 65 kW
Minimum Product Height 50 mm
Maximum Product Height 300 mm
Number of Product on a pallet 18 interlocked paving stone
Wooden Pallet Dimensions 30x30 inch
Production Capacity Size (mm) Pieces/Pallet Cycle Time sec Shift Production 8h Monthly Production
Paver 100x200x60 18 15-20 12600 327600
I Section 198x163x60 12 15-20 8400 218400
Blocks 198x163x80 6 15-20 4200 109200
Hollow BLock 100x200x400 6 15-20 4200 109200
Curb Stones 150x300x450 6 15-20 1400 36400
GET QUOTE

PAVMAC 24:

General Technical Parameters:

Machine Operating System Hydraulic System
Machine Production Capacity 100-120 pallets/h
Pumping Capacity 19 gallons/min, 20 Hp
Hydraulic Oil Capacity 700 liter
Lower Vibration Capacity 2 x 11.1 kW
Total Capacity Usage 140 kW
Minimum Product Height 50 mm
Maximum Product Height 300 mm
Number of Product on a pallet 24 interlocked paving stone
Wooden Pallet Dimensions 42x30 inch
Production Capacity Size (mm) Pieces/Pallet Cycle Time sec Shift Production 8h Monthly Production
Paver 100x200x60 24 15-20 16800 436800
I Section 198x163x60 15 15-20 10500 273000
Blocks 100x200x400 12 15-20 8400 218400
Hollow BLock 100x200x400 218400 15-20 8400 218400
Curb Stones 150x300x450 4 15-20 2800 2800
GET QUOTE

PAVMAC 36:

General Technical Parameters:

Machine Operating System Hydraulic System
Machine Production Capacity 100-120 pallets/h
Pumping Capacity 24 gallons/min, 30 Hp
Hydraulic Oil Capacity 1250 liter
Lower Vibration Capacity 2 x 22 kW
Total Capacity Usage 165 kW
Minimum Product Height 50 mm
Maximum Product Height 300 mm
Number of Product on a pallet 36 interlocked paving stone
Wooden Pallet Dimensions 55x47 inch
Production Capacity Size (mm) Pieces/Pallet Cycle Time sec Shift Production 8h Monthly Production
Paver 100x200x60 36 15-20 25200 655200
I Section 198x163x60 25 15-20 17500 455000
Blocks 100x200x400 15 15-20 10500 273000
Hollow BLock 100x200x400 15 15-20 10500 273000
Curb Stones 150x300x450 6 15-20 4200 109200
GET QUOTE

DRY MIX CONCRETE BATCHING PLANT FORPAVMAC

Aggregate Hopper:

In dry mixing concrete batching plant aggregate hoppers are used for storage of different types of raw materials. We offer different version of aggregate hopper with latest advance designs. Vibrator motors are attached with each hopper to make sure continuous process.

Weighing Conveyor or Weighing System:

We offer system for belt weighing which feature simple mounting and low maintenance requirements – isolated from lateral forces, with minimal hysteresis and maximum linearity. Together with our high-resolution speed sensors you can achieve a high measuring accuracy and repeatability. Accumulative sum of different aggregates is weighed on weighing scale.

Pneumatic System:

All Motions are controlled with pneumatic cylinder. We offer pneumatic cylinder with lubrication system. Highly pressurized air is generated through Air compressor that makes sure all motions are smoothly controlled by PLC System.

Automation and Control System:

The plant is fully automated and the system is controlled on a 17 inch coloured touch-screen with integrated mouse and keyboard connection point. The system is equipped with imported electrical installation devices and sensors. Remote stations with distributed I/O stations are also part of the plant automation. Advance PLC program and error control algorithm enables high sensitivity in weighing and dosage control even at maximum capacity.

Supervisory Control and Data Acquisition System (SCADA)

SCADA (Supervisory Control and Data Acquisition) is a type of Industrial Control System (ICS). Industrial Control Systems are computer controlled systems that monitor and control industrial processes that exist in the physical world.

Summary Chart

Model pavemac 18 pavemac 24 pavemac 36
Mixer Capacity 0.25 m3 0.4 m3 0.5 m3
Aggregate Hopper 3 m3 4 m3 5 m3
